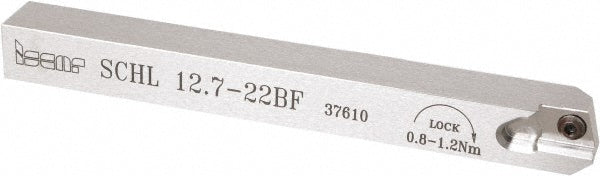

Indexable Grooving - Iscar 2802077

Iscar

Indexable Grooving - Iscar 2802077

MFR# 2802077Series Swisscut

$140.22List $144.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2802077 indexable grooving. Suited for universal. Series Swisscut.

Specifications

Compatible insert size codeSCIR-22-MTR-ISO; SCIR/L 22 BR/BL/BRA/BLA; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AD; SCIR/L-22-AR/AL; SCIR/L-22-MTR/MTL; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-NX
Complete insert compatibilitySCIL 22-050L12-00; SCIL 22-050N-00; SCIL 22-050R12-00; SCIL 22-080NP00; SCIL 22-100L16-00; SCIL 22-100N-00; SCIL 22-100NP08; SCIL 22-100R16-00; SCIL 22-150L16-00; SCIL 22-150N-00; SCIL 22-150NP05; SCIL 22-150R16-00; SCIL 22-200L16-00; SCIL 22-200N-10; SCI
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Insert compatibilitySCIL 22; SCIR 22
Insert holding methodScrew
Internal or externalExternal
Maximum depth of cut0.3150
Maximum groove width0.0980
Minimum groove width0.0200
Multi use toolYes
Overall length4.9210
Primary workpiece materialUniversal
Shank height0.5000
Shank width diameter0.5000
StandardsISO 13399
Toolholder styleSCH
Toolholder typeNon-Face Grooving
