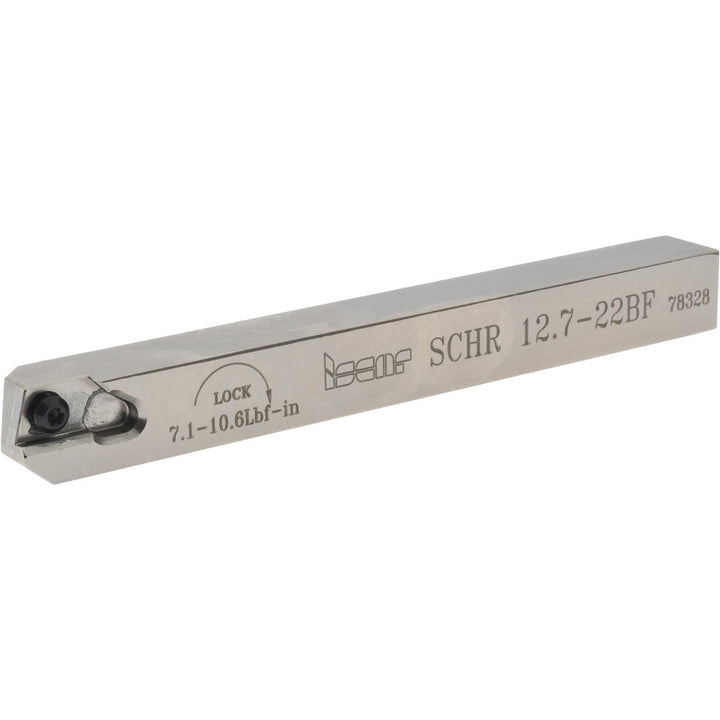

Indexable Grooving - Iscar 2802079

Iscar

Indexable Grooving - Iscar 2802079

MFR# 2802079Series Swisscut

$140.22List $144.80 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2802079 indexable grooving. Suited for universal. Series Swisscut.

Specifications

Compatible insert size codeSCIR-22-MTR-ISO; SCIR/L 22 BR/BL/BRA/BLA; SCIR/L 22 ER/EL/ERA/ELA; SCIR/L-22-AD; SCIR/L-22-AR/AL; SCIR/L-22-MTR/MTL; SCIR/L-22-N/R/L; SCIR/L-22-NP; SCIR/L-22-NX
Complete insert compatibilitySCIR 22-050N-00; SCIR 22-050R12-00; SCIR 22-100N-00; SCIR 22-150N-00; SCIR 22-150NP05; SCIR 22-200N-10; SCIR 22-200NP05; SCIR 22-250NP05; SCIR 22-AR00-25K16; SCIR 22-AR10-25K8; SCIR 22-BR00-05K7; SCIR 22-BR10-05K7; SCIR 22-EL00-07K0; SCIR 22-ER00-07K0
Coolant throughNo
Hand of holderRight Hand
Insert compatibilitySCIR 22
Insert holding methodClamp
Maximum depth of cut0.3150
Maximum groove width0.0980
Minimum groove width0.0200
Multi use toolYes
Overall length4.921
Primary workpiece materialUniversal
Shank height0.5000
Toolholder styleSCH
Toolholder typeExternal Grooving
