Iscar

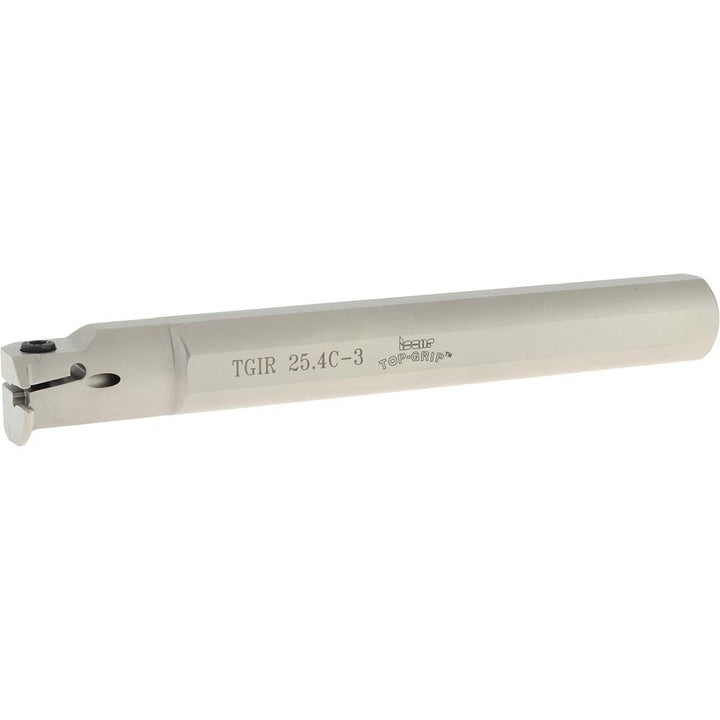

Indexable Grooving - Iscar 2850058
MFR# 2850058Series Top Grip
$460.19List $475.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850058 indexable grooving. Suited for universal. Series Top Grip.
Specifications
Center to cutting edge0.7400
Compatible insert size codeTGMA; TGMF; TGMF/P
Complete insert compatibilityTGMF 3..
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.5700
Insert compatibilityTGMF
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.3100
Maximum groove width0.1180
Minimum groove width0.1180
Minimum hole diameter1.2600
Multi use toolNo
Overall length7.8500
Primary workpiece materialUniversal
Shank length6.2800
Shank width diameter in1
StandardsISO 13399
Toolholder styleTGI
Toolholder typeNon-Face Grooving
