Iscar

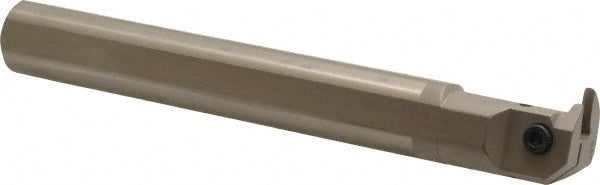

Indexable Grooving - Iscar 2850059
MFR# 2850059Series Top Grip
$460.19List $475.20
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850059 indexable grooving. Suited for universal. Series Top Grip.
Specifications
Center to cutting edge0.7700
Compatible insert size codeTGMA; TGMF; TGMF/P
Complete insert compatibilityTGMF 4..; TGMF 5..
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.5700
Insert compatibilityTGMF
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.3300
Maximum groove width0.1970
Minimum groove width0.1570
Minimum hole diameter1.2800
Multi use toolNo
Overall length7.8500
Primary workpiece materialUniversal
Shank length6.2800
Shank width diameter in1
StandardsISO 13399
Toolholder styleTGI
Toolholder typeNon-Face Grooving
