Iscar

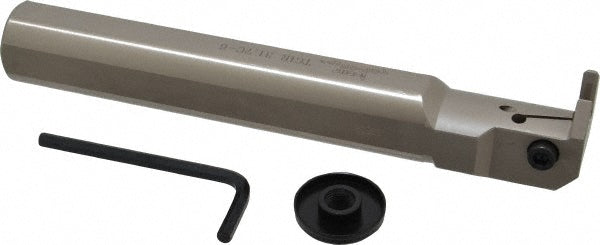

Indexable Grooving - Iscar 2850061
MFR# 2850061Series Top Grip
$571.94List $590.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850061 indexable grooving. Suited for universal. Series Top Grip.
Specifications
Center to cutting edge1.1400
Compatible insert size codeTGMA; TGMF; TGMF/P
Complete insert compatibilityTGMF 6..
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length2.0000
Insert compatibilityTGMF
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.7000
Maximum groove width in1/4
Minimum groove width0.2360
Minimum hole diameter1.8500
Multi use toolNo
Overall length8.6500
Primary workpiece materialUniversal
Shank length6.6500
Shank width diameter in1-1/4
StandardsISO 13399
Toolholder styleTGI
Toolholder typeNon-Face Grooving
