Iscar

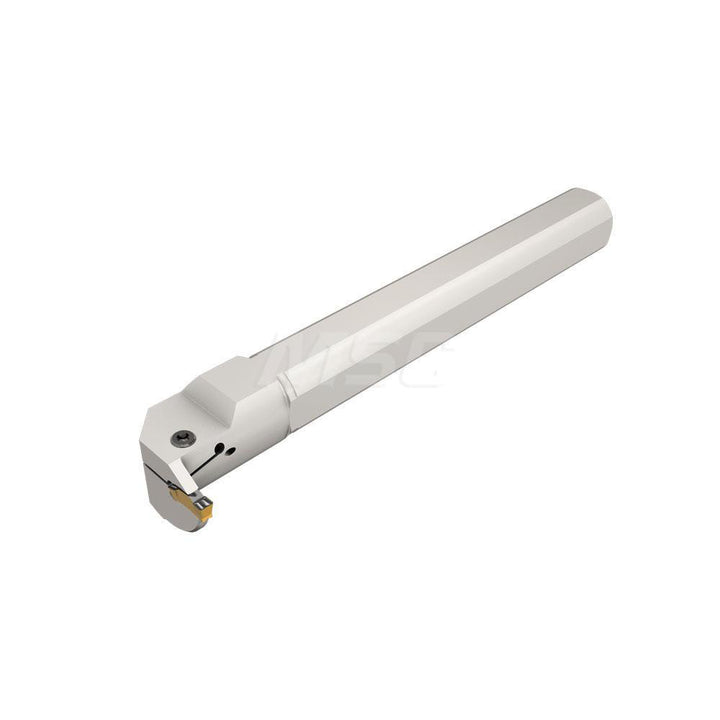

Indexable Grooving - Iscar 2850073
MFR# 2850073Series Top Grip
$571.94List $590.60
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850073 indexable grooving. Suited for universal. Series Top Grip.
Specifications
Center to cutting edge1.0000
Compatible insert size codeTGMA; TGMF; TGMF/P
Complete insert compatibilityTGMF 635-080
Coolant throughYes
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length2.0000
Insert compatibilityTGMF
Insert holding methodClamp
Internal or externalInternal
Maximum depth of cut0.4300
Maximum groove width0.1970
Minimum groove width0.1570
Minimum hole diameter1.6500
Multi use toolNo
Overall length8.6500
Primary workpiece materialUniversal
Shank diameter1.2500
Shank length6.6500
Shank width1.2500
StandardsISO 13399
Toolholder styleTGI
Toolholder typeNon-Face Grooving
