Iscar

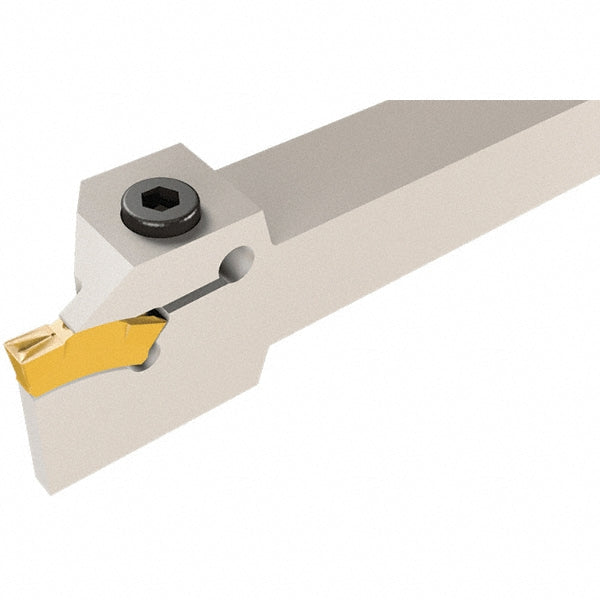

Indexable Grooving - Iscar 2850112
MFR# 2850112Series Top Grip
$226.51List $233.90
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850112 indexable grooving. Series Top Grip.
Specifications
Back of bar to cutting edge1.1500
Compatible insert size codeTGMF 6
Coolant throughNo
Cutting directionRight Hand
Hand of holderRight Hand
Head length1.6900
Insert compatibilityTGMF 6..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.8600
Maximum groove width in1/4
Minimum groove width0.2360
Multi use toolNo
Overall length6.0000
Shank height1.2500
Shank length4.3100
Shank width diameter1.2500
StandardsISO 13399
Toolholder styleTGD
Toolholder typeNon-Face Grooving
