Iscar

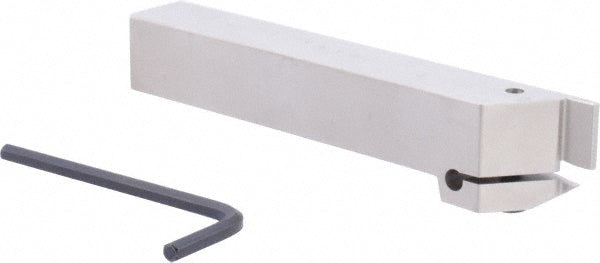

Indexable Grooving - Iscar 2850113
MFR# 2850113Series Top Grip
$193.00List $199.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850113 indexable grooving. Series Top Grip.
Specifications
Back of bar to cutting edge0.7000
Compatible insert size codeTGMF 3
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.3700
Insert compatibilityTGMF 3..
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.2900
Maximum groove width0.1250
Minimum groove width0.1180
Multi use toolNo
Overall length5.0000
Shank height0.7500
Shank length3.6300
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleTGD
Toolholder typeNon-Face Grooving
