Iscar

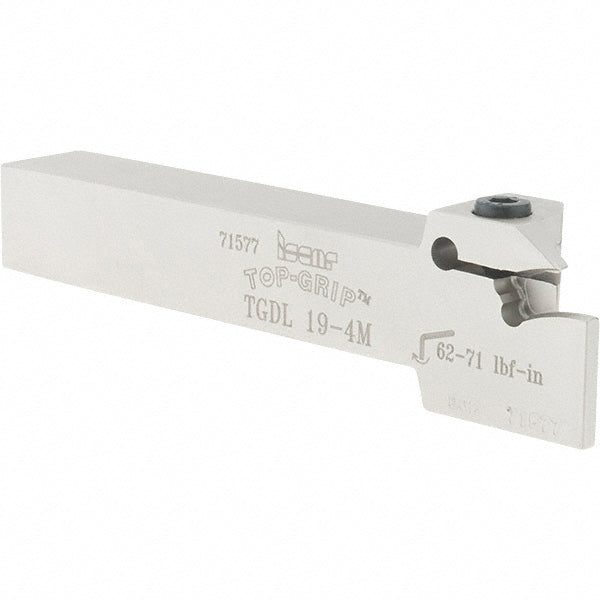

Indexable Grooving - Iscar 2850114
MFR# 2850114Series Top Grip
$196.42List $199.30
Save 1%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2850114 indexable grooving. Series Top Grip.
Specifications
Back of bar to cutting edge0.6830
Compatible insert size codeTGMF 4/TGMF 5
Complete insert compatibilityTGMF 4..; TGMF 5..; TGMP 5..
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Head length1.2800
Insert compatibilityTGM...
Insert holding methodClamp
Internal or externalExternal
Maximum depth of cut0.6830
Maximum groove width0.1970
Minimum groove width0.1570
Multi use toolNo
Overall length5.0000
Shank height0.7500
Shank length3.7200
Shank width diameter0.7500
StandardsISO 13399
Toolholder styleTGD
Toolholder typeNon-Face Grooving
