Iscar

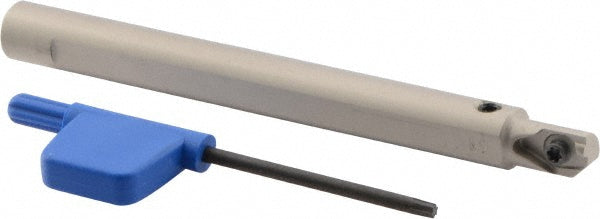

Indexable Grooving - Iscar 2861099
MFR# 2861099Cat# MIFHR 9.5C-8Series Min Cut
$234.64List $242.30
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2861099 indexable grooving. Suited for universal. Series Min Cut.
Specifications
Center to cutting edge0.0550
Compatible insert size codeMEFL; MIFR; MIGR 8; MITR 8-MT; MIUR 8
Complete insert compatibilityMIGR 8; MITR 8-MT; MIUR 8
Coolant throughYes
Cutting directionRight Hand
Hand of holderRight Hand
Head length0.4920
Insert compatibilityMI.R 8
Insert holding methodScrew
Internal or externalInternal
Manufacturers catalog numberMIFHR 9.5C-8
Maximum depth of cut0.4920
Multi use toolYes
Overall length4.0300
Primary workpiece materialUniversal
Shank length3.5380
Shank width diameter0.3750
StandardsISO 13399
Toolholder styleMIFHR
Toolholder typeNon-Face Grooving
