Iscar

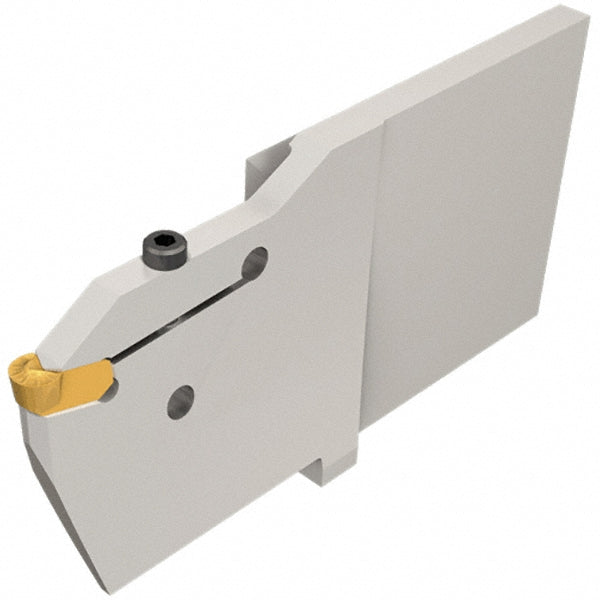

Indexable Grooving - Iscar 2892483
MFR# 2892483Series Cut Grip
$1,233.82List $1,310.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 2892483 indexable grooving. Series Cut Grip.
Specifications
Blade height2.0709
Blade styleCGFG
Blade width0.7874
Compatible insert styleGI 8CC; GIMF; GIMY; GIMY (Full Radius); GIMY-F
Complete insert compatibilityGIMF 808; GIMM 8CC; GIMY 808; GIMY 840; GIMY 840F
Cutting directionRight Hand
Cutting tool applicationGrooving; Parting; Turning
Maximum depth of cut4.7244
Maximum groove width0.3150
Maximum workpiece diameter59.0551
Minimum groove width0.3150
Minimum workpiece diameter27.5591
Overall length9.8425
StandardsISO 13399
