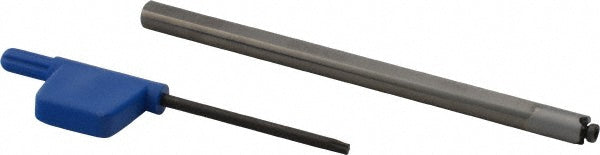

Indexable Grooving - Iscar 2896661

Iscar

Indexable Grooving - Iscar 2896661

MFR# 2896661Series Cham Groove

$243.65List $251.60 Save 3%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise

Description

The Iscar 2896661 indexable grooving. Suited for universal. Series Cham Groove.

Specifications

Center to cutting edge0.1890
Compatible insert size codeGIQR/L 8
Complete insert compatibilityGIQL 8-0.50-0.00; GIQL 8-0.75-0.00; GIQL 8-0.85-0.00; GIQL 8-1.20-R060; GIQL 8-2.00-R100; GIQL 8-A18-0.15; GIQL 8-B18-0.15; GIQL 8-MT-0.05; GIQR 8-0.50-0.00; GIQR 8-0.75-0.00; GIQR 8-1.20-R060; GIQR 8-2.00-R100; GIQR 8-3.00-R150; GIQR 8-A18-0.15; GIQR 8-B
Coolant throughNo
Cutting directionLeft Hand
Hand of holderLeft Hand
Insert compatibilityGIQ. 8..
Insert holding methodScrew
Internal or externalInternal
Maximum depth of cut0.0591
Maximum groove width0.1575
Minimum groove width0.0197
Minimum hole diameter0.3150
Multi use toolYes
Overall length3.9370
Primary workpiece materialUniversal
Shank width diameter0.2362
StandardsISO 13399
Toolholder materialSolid Carbide
Toolholder styleMGCH
Toolholder typeNon-Face Grooving
