Iscar

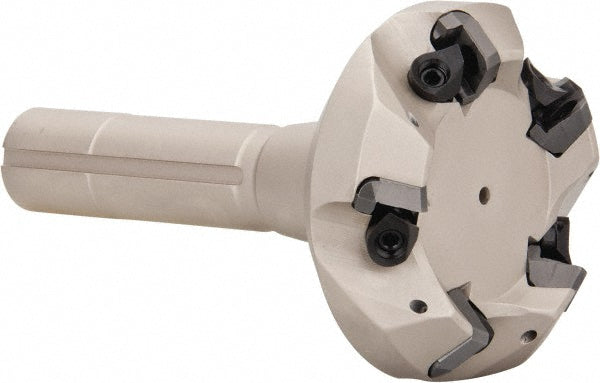

Indexable End Mills - Iscar 3100048
MFR# 3100048Series IscarMill
$857.04List $885.00
Save 3%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3100048 indexable end mills. Series IscarMill.
Specifications
Compatible insert size codeSE.N/R 12
Coolant throughNo
Functional length (mm)38.10
Head length1.5000
Insert holding methodScrew
Insert styleSE.N/R 12..
Maximum cutting diameter3.1969
Maximum depth of cut0.2559
Minimum cutting diameter2.4803
Number of cutter inserts5
Number of flutes5
Overall length5.5118
Shank length4.2500
Shank taper sizeR8
Shank typeTaper
StandardsISO 13399
Toolholder styleF45E
Tool applicationMilling
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
