Iscar

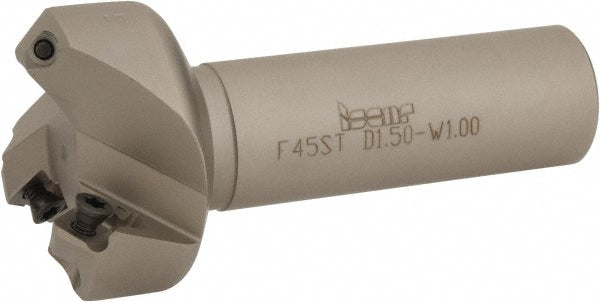

Indexable End Mills - Iscar 3100389
MFR# 3100389Cat# F45ST D1.50-W1.00Series IscarMill
$456.12List $471.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3100389 indexable end mills. Series IscarMill.
Specifications
Functional length1.2900
Head length1.2900
Insert holding methodScrew
Insert styleSE.. 1204; SE.. 12T3..
Manufacturers catalog numberF45ST D1.50-W1.00
Maximum body diameter1.0000
Maximum cutting diameter2.0100
Maximum depth of cut0.2600
Minimum cutting diameter in1-1/2
Number of cutter inserts3
Overall length in4
Shank diameter in1
Shank typeWeldon Flat
StandardsISO 13399
Toolholder styleF45ST
Tool applicationMilling
