Iscar

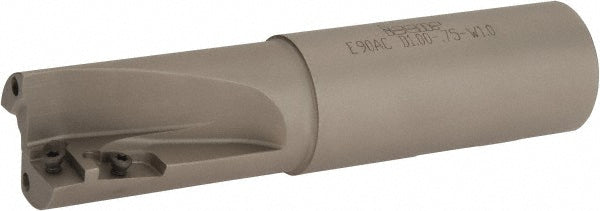

Indexable End Mills - Iscar 3100402
MFR# 3100402Cat# E90AC D1.00-.75W1.0Series Helimill
$498.74List $515.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Iscar 3100402 indexable end mills. Series Helimill.
Specifications
Coolant throughNo
Cutter styleE90AC
Flute typeHelical
Head length1.9700
Insert compatibilityAP.T 1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberE90AC D1.00-.75W1.0
Maximum depth of cut0.7500
Number of cutter inserts3
Number of flutes1
Oshas180012007
Shank diameter in1
Shank length2.3600
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length1.9300
