Iscar
Indexable Milling Cutters - Iscar 3101598
MFR# 3101598Cat# 3M F90AX D2.00-6-.75-13Series Mill2000
$617.85List $638.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description

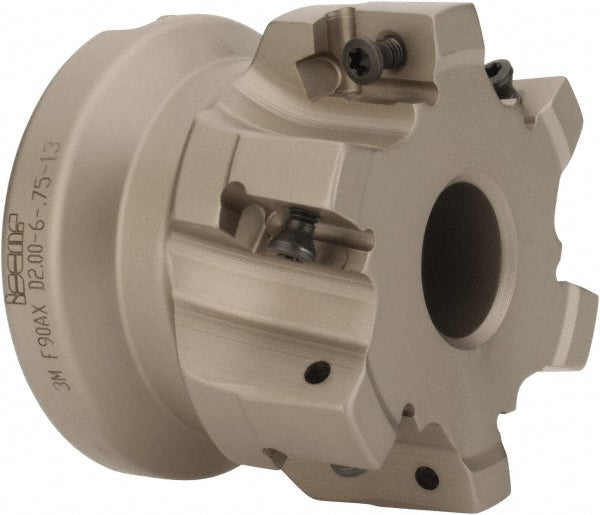

The Iscar 3101598 indexable milling cutters. Series Mill2000.
Specifications
Arbor hole diameter0.7500
Compatible insert size code3M AXKT 1304
Complete insert compatibility3M AXKT 1304; 3M AXKT 1304..R-PDRMM
Coolant throughNo
Cutter style3M F90AX-13
Cutting edge length0.5000
Hub diameter1.8420
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog number3M F90AX D2.00-6-.75-13
Maximum cutting diameter in2
Maximum depth of cut0.5000
Maximum insert radius0.0940
Minimum insert radius0.0240
Number of cutter inserts6
Number of flutes6
Overall height1.5700
StandardsISO
