Iscar

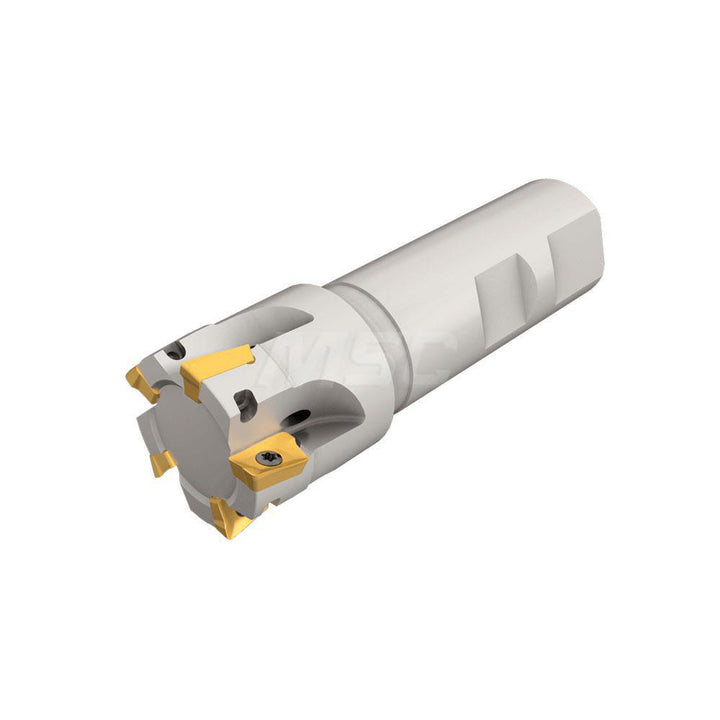

Indexable End Mills - Iscar 3101744
MFR# 3101744Series Heli2000
$397.49List $421.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3101744 indexable end mills. Series Heli2000.
Specifications
Coolant throughYes
Cutter styleHM90 E90A-10
Flute typeHelical
Head length1.0000
Insert compatibilityAPCR; APCT; APKR; APKT; APKW; HM90APCT; HM90APKT; HM90APKW 1003
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Maximum depth of cut0.3940
Maximum ramping angle3.5
Number of cutter inserts2
Number of flutes2
Oshas180012007
Shank diameter in3/4
Shank length2.3800
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length0.9400
