Iscar

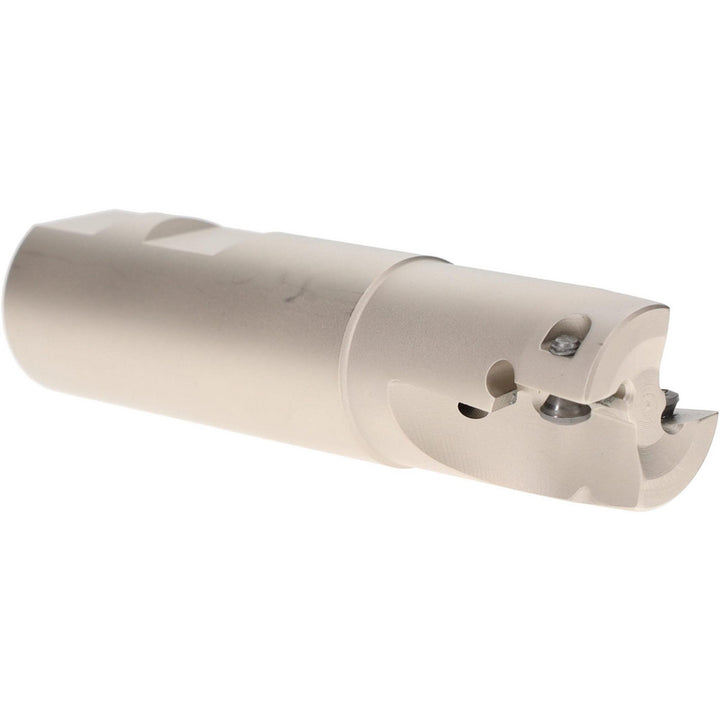

Indexable End Mills - Iscar 3101764
MFR# 3101764Cat# HM90 E90AD-D1.0-2-W1.0-CSeries Heli2000
$401.88List $415.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3101764 indexable end mills. Series Heli2000.
Specifications
Complete insert compatibilityADCT; ADCR; ADKR; ADKT; ADMT; HM90ADCT; HM90ADKT; HM90ADKW 1505
Coolant throughYes
Cutter styleHM90 E90AD-15
Flute typeHelical
Head length1.5000
Insert compatibilityAD..1505..; HM90 AD..1505
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90AD-D1.0-2-W1.0-C
Maximum depth of cut0.5600
Maximum ramping angle11.5
Number of cutter inserts2
Number of flutes2
Oshas180012007
Shank diameter in1
Shank length in2-1/2
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length1.4700
