Iscar

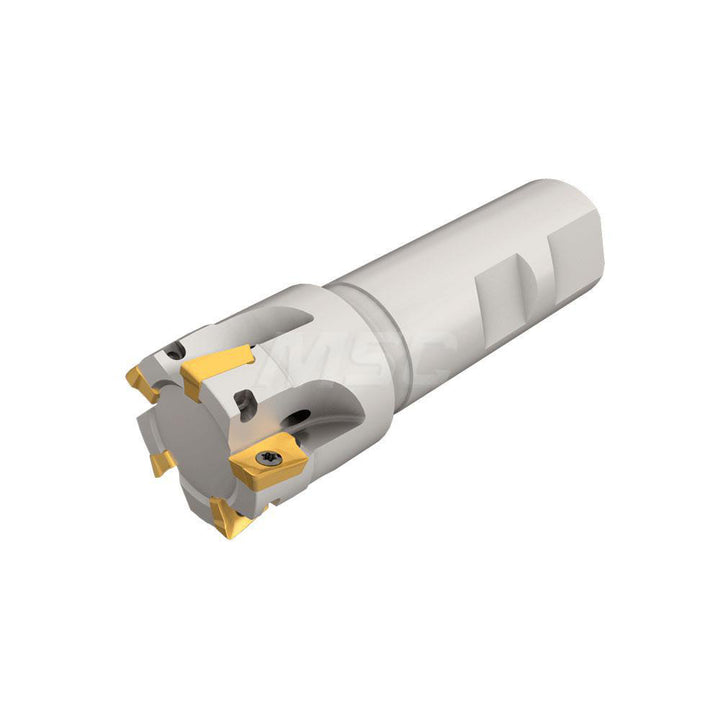

Indexable End Mills - Iscar 3101858
MFR# 3101858Series Heli2000
$435.78List $450.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3101858 indexable end mills. Series Heli2000.
Specifications
Coolant throughYes
Cutter styleHM90 E90A-10
Cutting diameter1
Flute typeHelical
Head length1
Insert compatibilityAPCR; APCT; APKR; APKT; APKW; HM90APCT; HM90APKT; HM90APKW 1003
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Maximum depth of cut0.3940
Maximum ramping angle2.5
Number of cutter inserts3
Number of flutes3
Oshas180012007
Overall length in3-3/4
Shank diameter in1
Shank length in2-3/4
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length0.9600
