Iscar

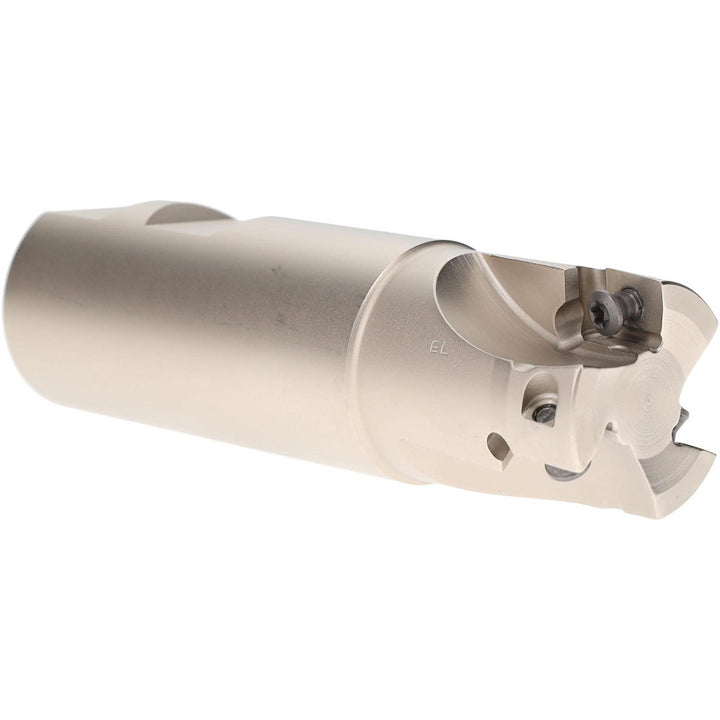

Indexable End Mills - Iscar 3101878
MFR# 3101878Cat# HM90 E90AD-D1.25-3-W1.25Series Heli2000
$442.56List $457.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3101878 indexable end mills. Series Heli2000.
Specifications
Coolant throughNo
Cutter styleHM90 E90AD-15
Head length1.5000
Insert compatibilityAD..1505..; HM90 AD..1505
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90AD-D1.25-3-W1.25
Maximum depth of cut0.5600
Maximum ramping angle5.3
Number of cutter inserts3
Number of flutes3
Oshas180012007
Shank diameter in1-1/4
Shank length2.7500
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Usable length1.4600
