Iscar

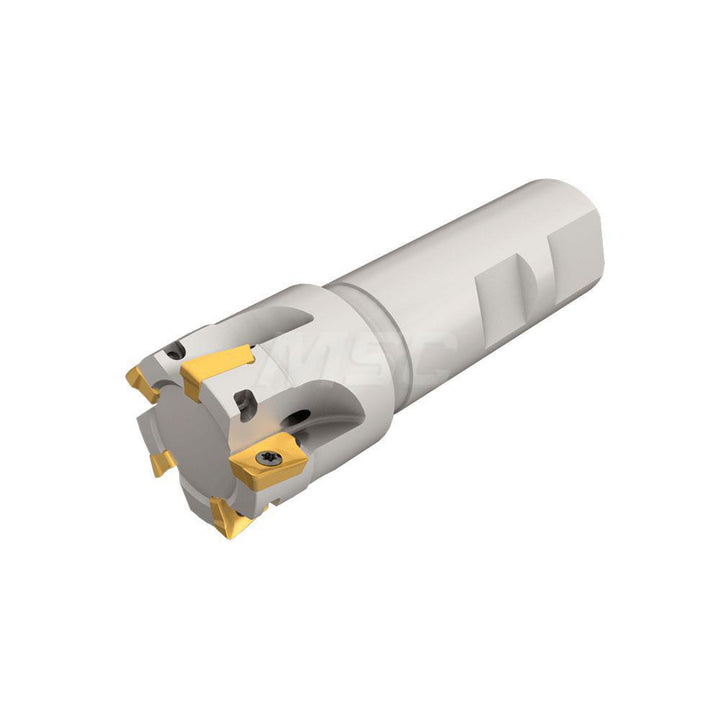

Indexable End Mills - Iscar 3101932
MFR# 3101932Cat# HM90 E90A-D1.00-3-W1.00Series Heli2000
$409.64List $423.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3101932 indexable end mills. Series Heli2000.
Specifications
Coolant throughNo
Cutter styleHM90 E90A-10
Head length1.0000
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90A-D1.00-3-W1.00
Maximum depth of cut0.3940
Maximum ramping angle2.5
Number of cutter inserts3
Number of flutes3
Oshas180012007
Shank diameter in1
Shank length2.7500
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
Usable length0.9600
