Iscar

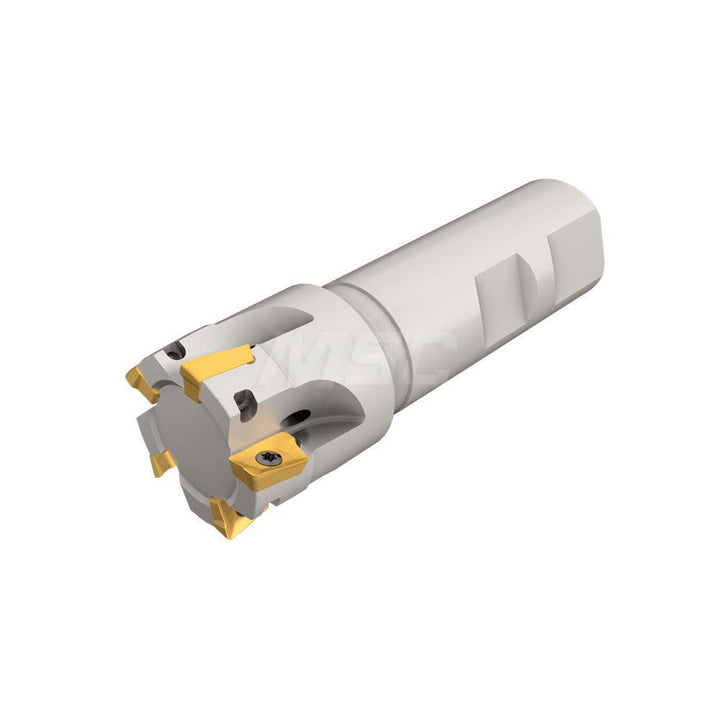

Indexable End Mills - Iscar 3101934
MFR# 3101934Series Heli2000
$440.51List $466.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3101934 indexable end mills. Series Heli2000.
Specifications
Complete insert compatibilityAPCR; APCT; APKR; APKT; APKW; HM90APCT; HM90APKT; HM90APKW 1003
Coolant throughNo
Cutter styleHM90 E90A-10
Flute typeHelical
Head length1.0000
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Maximum depth of cut0.3940
Maximum ramping angle2.5
Number of cutter inserts4
Number of flutes4
Oshas180012007
Shank diameter in1
Shank length in2-3/4
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
Usable length0.9600
