Iscar

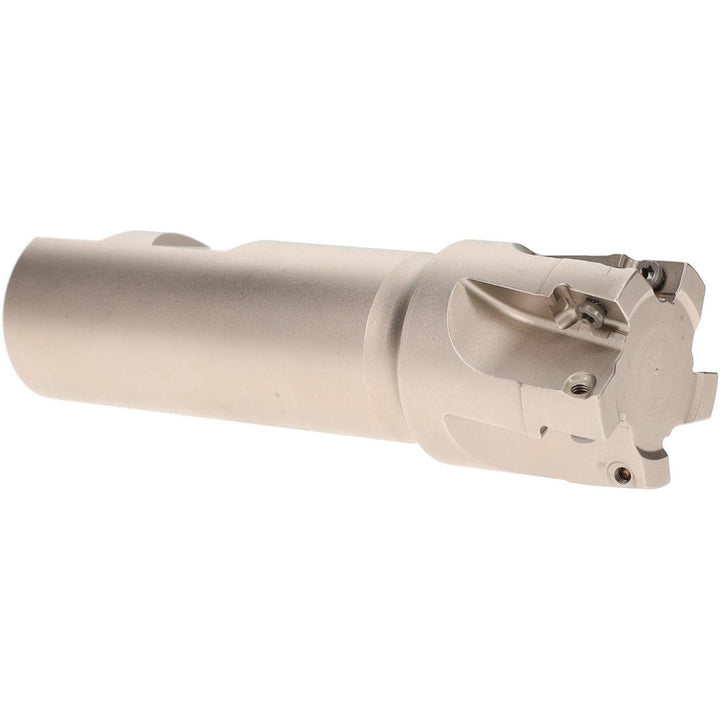

Indexable End Mills - Iscar 3101941
MFR# 3101941Cat# HM90 E90A-D1.25-5-W1.00Series Heli2000
$486.14List $502.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3101941 indexable end mills. Series Heli2000.
Specifications
Coolant throughNo
Cutter styleHM90 E90A-10
Head length1.2000
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90A-D1.25-5-W1.00
Maximum depth of cut0.3940
Maximum ramping angle3
Number of cutter inserts5
Number of flutes5
Oshas180012007
Shank diameter in1
Shank length2.5500
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
