Iscar

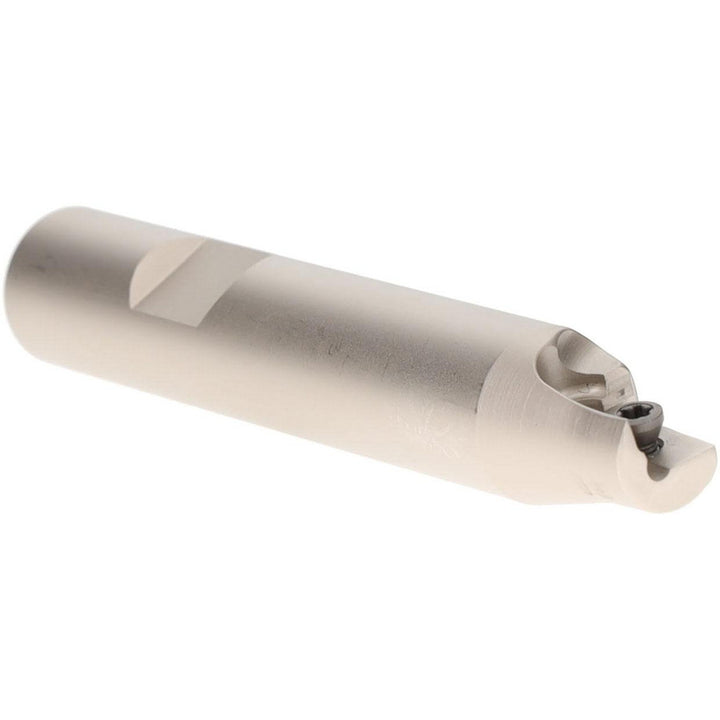

Indexable End Mills - Iscar 3101942
MFR# 3101942Cat# HM90 E90A-D.38-1-W.50Series Heli2000
$293.63List $311.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Iscar 3101942 indexable end mills. Series Heli2000.
Specifications
Coolant throughNo
Cutter styleHM90 E90A-10
Head length0.6400
Insert compatibilityAP..1003..; HM90 AP..1003..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHM90 E90A-D.38-1-W.50
Maximum depth of cut0.3940
Maximum ramping angle5
Number of cutter inserts1
Number of flutes1
Oshas180012007
Shank diameter in1/2
Shank length2.2000
Shank typeWeldon Flat
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
Usable length0.4300
