Iscar

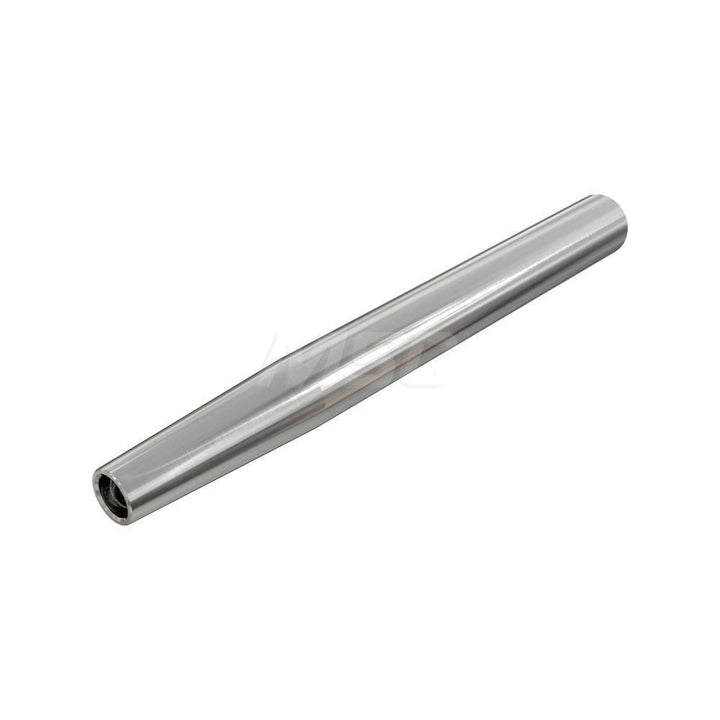

Milling Tip Inserts, Holders & Kits - Iscar 3102031
MFR# 3102031Cat# MM S-B-L5.00-C.625-T06Series Multimaster
$175.77List $181.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3102031 milling tip inserts, holders & kits. Series Multimaster.
Specifications
Coolant throughNo
Effective length1.3800
Head length1.2830
Manufacturers catalog numberMM S-B-L5.00-C.625-T06
Maximum diameter0.6250
Neck diameter0.3700
Neck thread sizeT06
Overall length5.0000
Projection1.3800
Shank diameter in5/8
Shank shapeStraight
Shank type85 Degree
Toolholder styleMM S-B
Tool applicationMilling
Tool materialSteel
Weldon flatNo
