Iscar

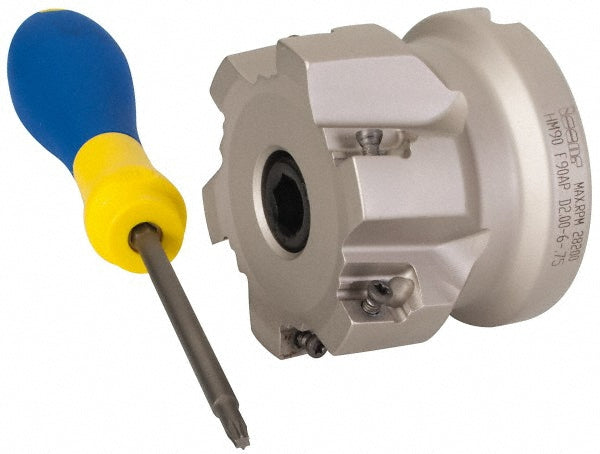

Indexable Milling Cutters - Iscar 3102078
MFR# 3102078Cat# HM90 F90AP D2.00-6-.75Series HM90
$716.68List $760.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3102078 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeAP 1003; HM90 AP 1003
Complete insert compatibilityAP... 1003; HM90 APKT
Coolant throughNo
Cutter styleHM90 F90AP-10
Cutting directionRight Hand
Hub diameter1.8900
Insert holding methodClamp; Screw
Keyway depth0.1875
Keyway width0.3125
Lead angle0/90
Manufacturers catalog numberHM90 F90AP D2.00-6-.75
Maximum cutting diameter in2
Maximum depth of cut0.3900
Maximum ramping angle1.40
Number of cutter inserts6
Number of flutes6
Overall height1.5700
StandardsISO
