Iscar

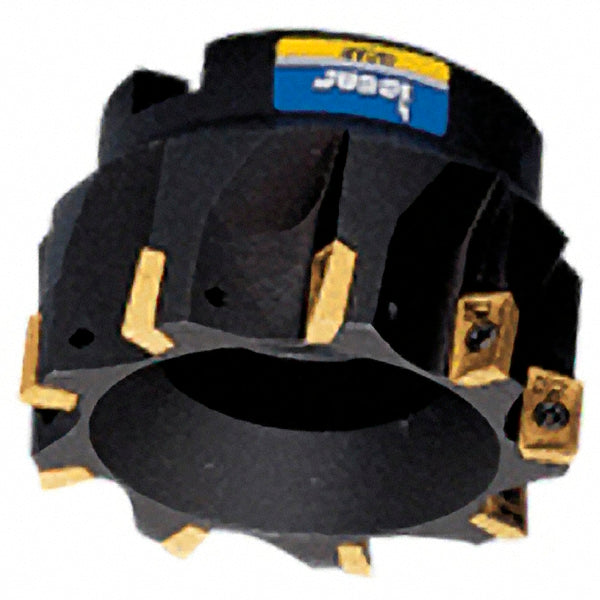

Indexable Milling Cutters - Iscar 3102079
MFR# 3102079Series Heli2000
$803.78List $830.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes7
Description
The Iscar 3102079 indexable milling cutters. Series Heli2000.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeAP 1003
Complete insert compatibilityAPCT 100302R-HM; APCT 100304R-HM; APCT 1003PDR-HM; APKR 1003PDR-HM; APKT 100308PDTR-RM; APKT 100310PDR-RM; APKT 100312TR-RM; APKT 100316PDTR-RM; APKT 100320PDTR-RM; APKT 100325R; APKT 100330R; APKT 100340R; APKT 1003PDR-HM
Coolant throughNo
Cutter styleHM90 F90AP-10
Cutting directionRight Hand
Hub diameter2.3300
Insert holding methodScrew
Lead angle0/90
Maximum cutting diameter in2-1/2
Maximum depth of cut0.3900
Number of cutter inserts7
Number of flutes7
Overall height1.7500
StandardsISO
