Iscar

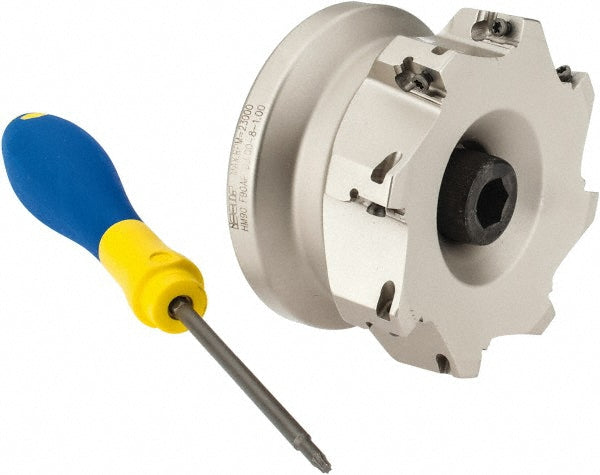

Indexable Milling Cutters - Iscar 3102080
MFR# 3102080Cat# HM90 F90AP D3.00-8-1.00Series HM90
$938.28List $995.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Iscar 3102080 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in1
Compatible insert size codeAP 1003; HM90 AP 1003
Complete insert compatibilityAP... 1003; HM90 APKT
Coolant throughNo
Counterbore diameter0.7800
Cutter styleHM90 F90AP-10
Cutting directionRight Hand
Hub diameter2.7600
Insert holding methodClamp; Screw
Keyway depth0.2188
Keyway width0.3750
Lead angle0/90
Manufacturers catalog numberHM90 F90AP D3.00-8-1.00
Maximum cutting diameter in3
Maximum depth of cut0.3900
Maximum ramping angle0.90
Number of cutter inserts8
Number of flutes8
Overall height in1-3/4
StandardsISO
