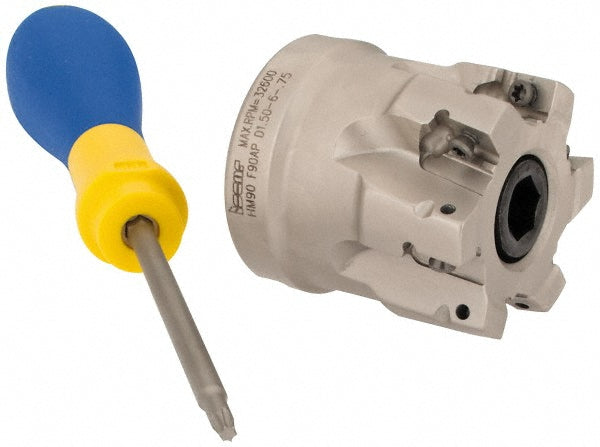

Indexable Milling Cutters - Iscar 3102084
MFR# 3102084Cat# HM90 F90AP D1.50-6-.75Series HM90
$591.70List $611.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3102084 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeAP 1003; HM90 AP 1003
Complete insert compatibilityAP... 1003; HM90 APKT
Coolant throughNo
Cutter styleHM90 F90AP-10
Cutting directionRight Hand
Hub diameter1.4400
Insert holding methodClamp; Screw
Keyway depth0.1875
Keyway width0.3125
Lead angle0/90
Manufacturers catalog numberHM90 F90AP D1.50-6-.75
Maximum cutting diameter in1-1/2
Maximum depth of cut0.3900
Maximum ramping angle1.90
Number of cutter inserts6
Number of flutes6
Overall height1.5700
StandardsISO
