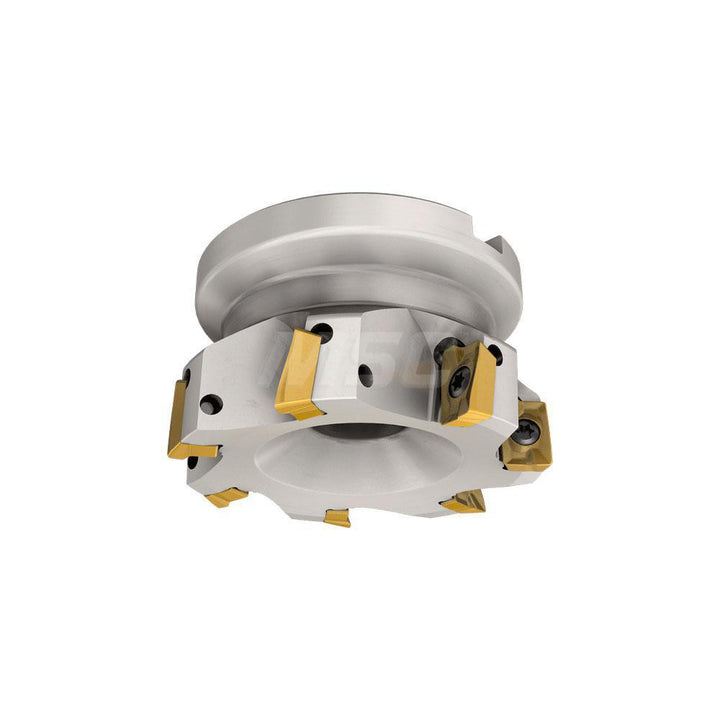

Indexable Milling Cutters - Iscar 3102111
MFR# 3102111Cat# HM90 F90A D4.00-6-1.50Series HM90
$1,054.87List $1,120.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3102111 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in1-1/2
Compatible insert size codeAD 1505; HM90 AD 1505
Complete insert compatibilityADCA150340/150350; ADKT 15056L/R-HM
Coolant throughNo
Counterbore diameter0.2030
Cutter styleHM90 F90A-15
Cutting directionRight Hand
Hub diameter3.0700
Insert holding methodClamp; Screw
Keyway depth0.3750
Keyway width0.6250
Lead angle0/90
Manufacturers catalog numberHM90 F90A D4.00-6-1.50
Maximum cutting diameter in4
Maximum depth of cut0.5600
Maximum ramping angle0.70
Number of cutter inserts6
Number of flutes6
Overall height in2
StandardsISO
