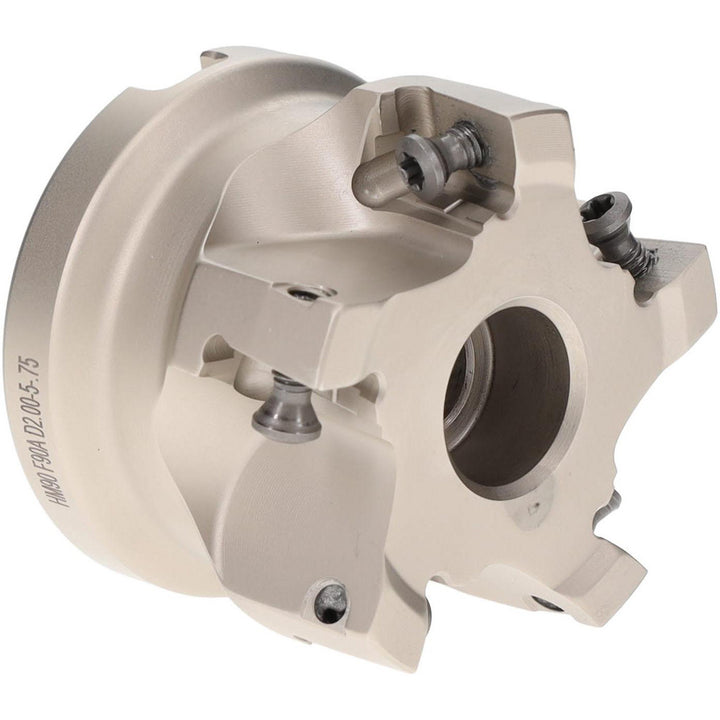

Indexable Milling Cutters - Iscar 3102118
MFR# 3102118Cat# HM90 F90A D2.00-5-.75Series HM90
$587.83List $607.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3102118 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeAD 1505; HM90 AD 1505
Coolant throughNo
Cutter styleHM90 F90A-15
Cutting directionRight Hand
Hub diameter1.8900
Insert holding methodClamp; Screw
Keyway depth0.1875
Keyway width0.3125
Lead angle0/90
Manufacturers catalog numberHM90 F90A D2.00-5-.75
Maximum cutting diameter in2
Maximum depth of cut0.5600
Maximum ramping angle2.60
Number of cutter inserts5
Number of flutes5
Overall height1.5700
StandardsISO
