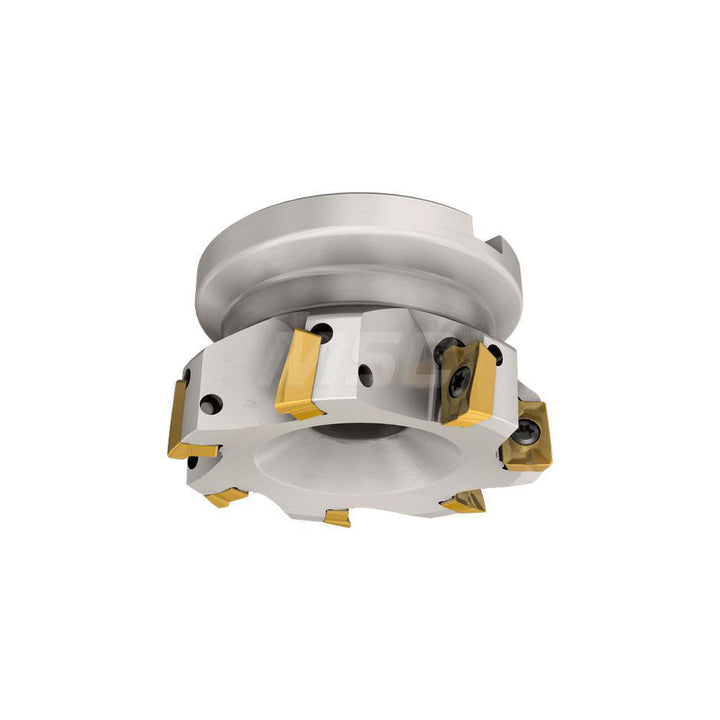

Indexable Milling Cutters - Iscar 3102119
MFR# 3102119Cat# HM90 F90A D2.50-6-1.00Series HM90
$731.14List $755.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3102119 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in1
Compatible insert size codeAD 1505; HM90 AD 1505
Coolant throughNo
Counterbore diameter0.7800
Cutter styleHM90 F90A-15
Cutting directionRight Hand
Hub diameter2.3300
Insert holding methodClamp; Screw
Keyway depth0.2188
Keyway width0.3750
Lead angle0/90
Manufacturers catalog numberHM90 F90A D2.50-6-1.00
Maximum cutting diameter in2-1/2
Maximum depth of cut0.5600
Maximum ramping angle2.00
Number of cutter inserts6
Number of flutes6
Overall height in1-3/4
StandardsISO
