Iscar

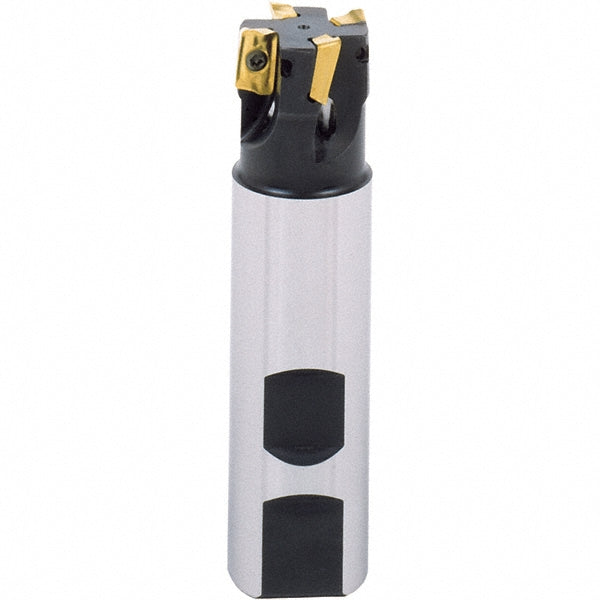

Indexable End Mills - Iscar 3102156
MFR# 3102156Series Heli2000
$474.52List $490.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3102156 indexable end mills. Series Heli2000.
Specifications
Coolant throughNo
Cutter styleHM90 E90AD-15
Head length1.9700
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Maximum depth of cut0.5600
Maximum ramping angle5.3
Number of cutter inserts3
Oshas180012007
Shank diameter in1-1/4
Shank length7.8700
Shank typeCylindrical
StandardsAS 9100
Tool applicationMilling
Usable length1.9000
