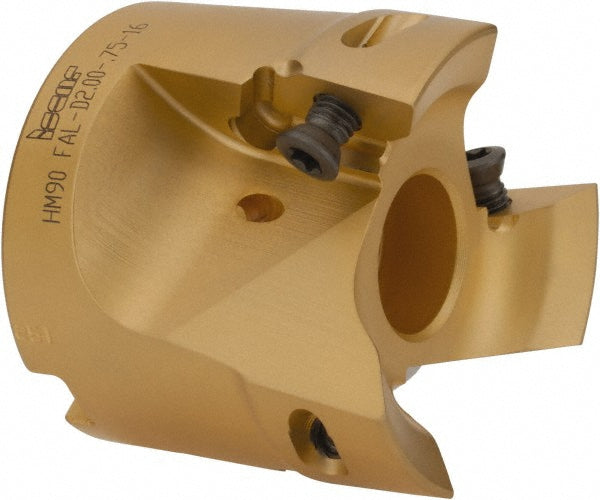

Indexable Milling Cutters - Iscar 3102769
MFR# 3102769Cat# HM90 FAL-D2.00-.75-16Series HM90
$679.82List $702.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3102769 indexable milling cutters. Series HM90.
Specifications
Arbor hole diameter in3/4
Compatible insert size codeHM90 APCR 1605
Coolant throughNo
Cutter styleHM90 FAL-16
Cutting directionRight Hand
Hub diameter1.8800
Insert holding methodScrew
Lead angle0/90
Manufacturers catalog numberHM90 FAL-D2.00-.75-16
Maximum cutting diameter in2
Maximum depth of cut0.6220
Maximum ramping angle10.40
Number of cutter inserts3
Number of flutes3
Overall height1.7500
StandardsISO
