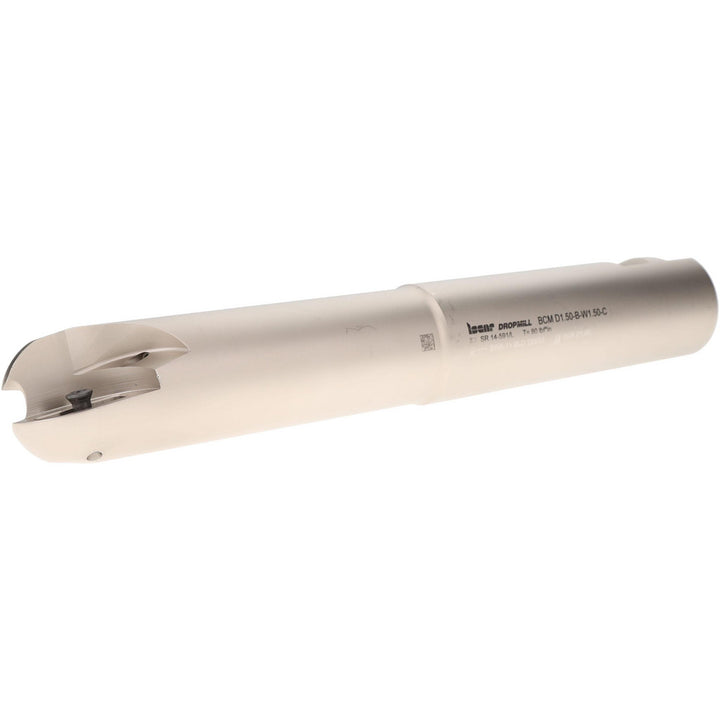

1-1/2" Indexable End Mills - Iscar 3103057
MFR# 3103057Cat# BCM D1.50-B-W1.50-CSeries DropMill
$840.58List $868.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3103057 indexable end mills. Series DropMill.
Specifications
Compatible insert styleBCR D1.50
Coolant throughYes
Cutting diameter in1-1/2
Head length5.0000
Insert holding methodScrew
Manufacturers catalog numberBCM D1.50-B-W1.50-C
Maximum depth of cut1.3300
Number of ball nose inserts2
Number of flutes2
Overall length10.0000
Shank diameter in1-1/2
Shank typeWeldon Flat
StandardsISO 13399
Tapered neckYes
Toolholder styleBCM
Tool applicationMilling
Tool materialSolid Carbide
Weldon flatYes
