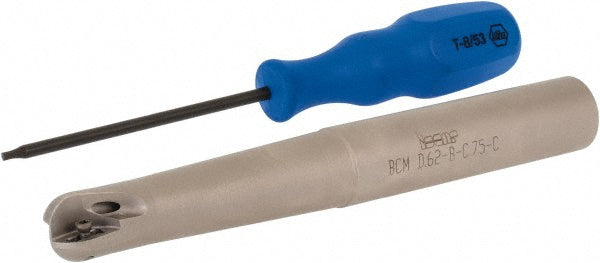

5/8" Indexable End Mills - Iscar 3103437
MFR# 3103437Cat# BCM D.62-B-C.75-CSeries DropMill
$415.86List $441.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3103437 indexable end mills. Series DropMill.
Specifications
Compatible insert styleBCR D.62
Coolant throughYes
Cutting diameter in5/8
Head length3.0300
Insert holding methodScrew
Manufacturers catalog numberBCM D.62-B-C.75-C
Maximum depth of cut0.5000
Number of ball nose inserts2
Number of flutes2
Overall length6.0000
Shank diameter in3/4
Shank typeCylindrical
StandardsISO 13399
Tapered neckYes
Toolholder styleBCM
Tool applicationMilling
Tool materialSolid Carbide
Weldon flatNo
