Iscar

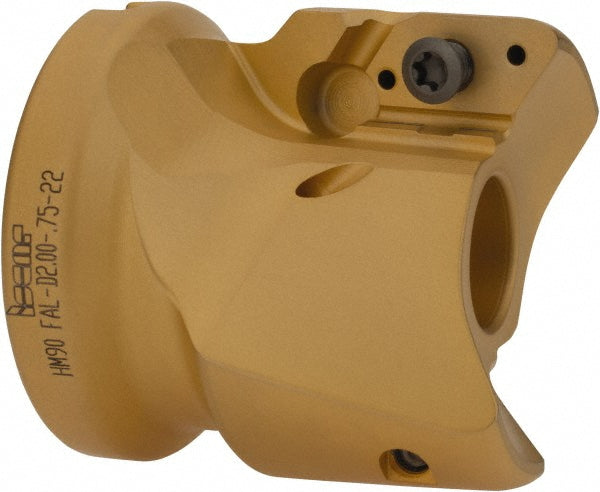

Indexable Milling Cutters - Iscar 3103546
MFR# 3103546Cat# HM90 FAL-D2.00-.75-22Series Helialu
$679.82List $702.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3103546 indexable milling cutters. Series Helialu.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeHM90 APCR 2206
Complete insert compatibilityHM90 APCR 2206..R-P; HM90 APCR 220605-CS
Coolant throughYes
Cutter styleHM90 FAL-22
Cutting edge length0.8070
Hub diameter1.9300
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberHM90 FAL-D2.00-.75-22
Maximum cutting diameter in2
Maximum depth of cut0.8070
Maximum insert radius0.0310
Maximum ramping angle10.00
Minimum insert radius0.0200
Number of cutter inserts2
Number of flutes2
Overall height2.0000
StandardsISO
