Iscar

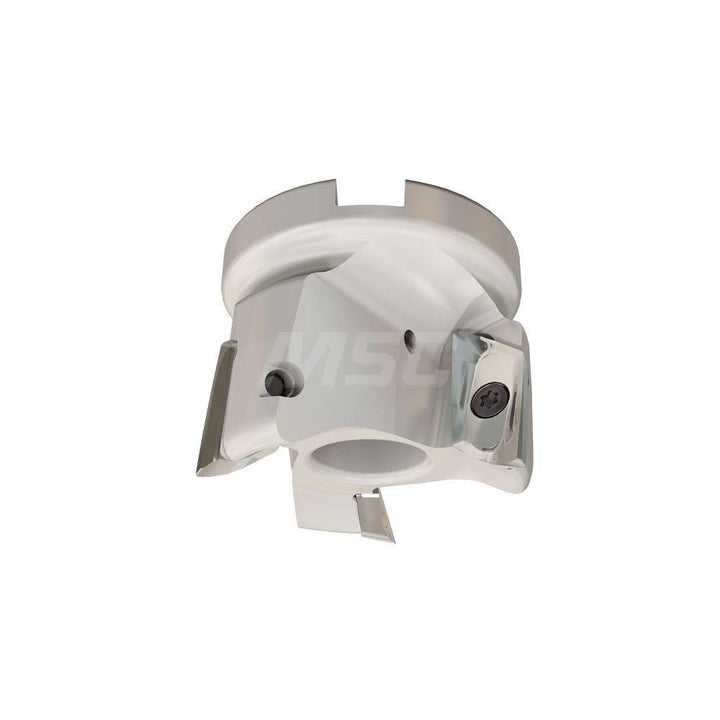

Indexable Milling Cutters - Iscar 3103547
MFR# 3103547Series Helialu
$819.52List $868.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Iscar 3103547 indexable milling cutters. Series Helialu.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeHM90 APCR 2206
Complete insert compatibilityHM90 APCR 2206..R-P; HM90 APCR 220605-CS
Coolant throughYes
Cutter styleHM90 FAL-22
Cutting edge length0.8070
Hub diameter2.3600
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in2-1/2
Maximum depth of cut0.8070
Maximum insert radius0.0310
Maximum ramping angle7.00
Minimum insert radius0.0200
Number of cutter inserts3
Number of flutes3
Overall height2.0000
StandardsISO
