Iscar

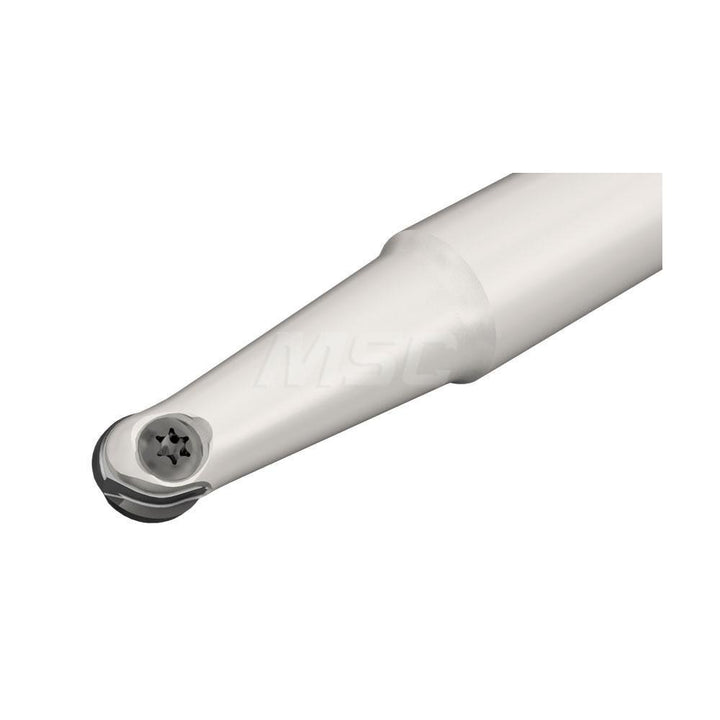

Indexable End Mills - Iscar 3103568
MFR# 3103568Series BallPlus
$229.51List $237.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Iscar 3103568 indexable end mills. Series BallPlus.
Specifications
Compatible insert styleHBR-QF; HCR
Coolant throughNo
Cutting diameter (mm)10.00
Head length (mm)25.00
Insert holding methodScrew
Neck diameter0.3620
Number of ball nose inserts1
Number of flutes1
Overall length (mm)90.00
Shank diameter (mm)10.00
Shank typeCylindrical
StandardsISO 13399
Tapered neckNo
Toolholder styleHCM D10
Tool applicationMilling
Tool materialSteel
Weldon flatNo
