Iscar

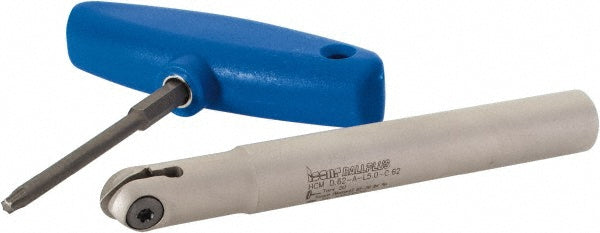

5/8" Indexable End Mills - Iscar 3103602
MFR# 3103602Cat# HCM D.62-A-L5.0-C.62Series BallPlus
$329.26List $340.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes1
Description
The Iscar 3103602 indexable end mills. Series BallPlus.
Specifications
Compatible insert styleHBF D.62; HBR D.62; HCR D.62
Coolant throughNo
Cutting diameter in5/8
Head length1.4000
Insert holding methodScrew
Manufacturers catalog numberHCM D.62-A-L5.0-C.62
Neck diameter0.5630
Number of ball nose inserts1
Number of flutes1
Overall length5.1000
Shank diameter in5/8
Shank typeCylindrical
StandardsISO 13399
Tapered neckNo
Toolholder styleHCM D.62
Tool applicationMilling
Tool materialSolid Carbide
Weldon flatNo
