Iscar

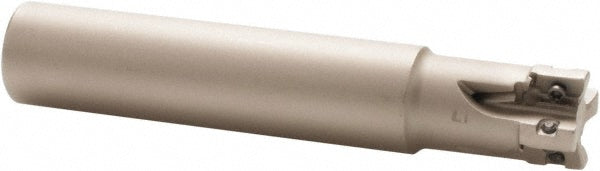

Indexable End Mills - Iscar 3103624
MFR# 3103624Cat# HP E90AN-D.62-4-C.62-7CSeries Heliplus
$391.24List $404.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3103624 indexable end mills. Series Heliplus.
Specifications
Coolant throughYes
Cutter styleHP E90AN-07
Head length1.0000
Insert compatibilityHP AN.. 0702..
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberHP E90AN-D.62-4-C.62-7C
Maximum depth of cut0.3030
Number of cutter inserts4
Number of flutes4
Oshas180012007
Shank diameter in5/8
Shank length in2-1/2
Shank typeCylindrical
StandardsAS 9100
Tool applicationMilling
