Iscar

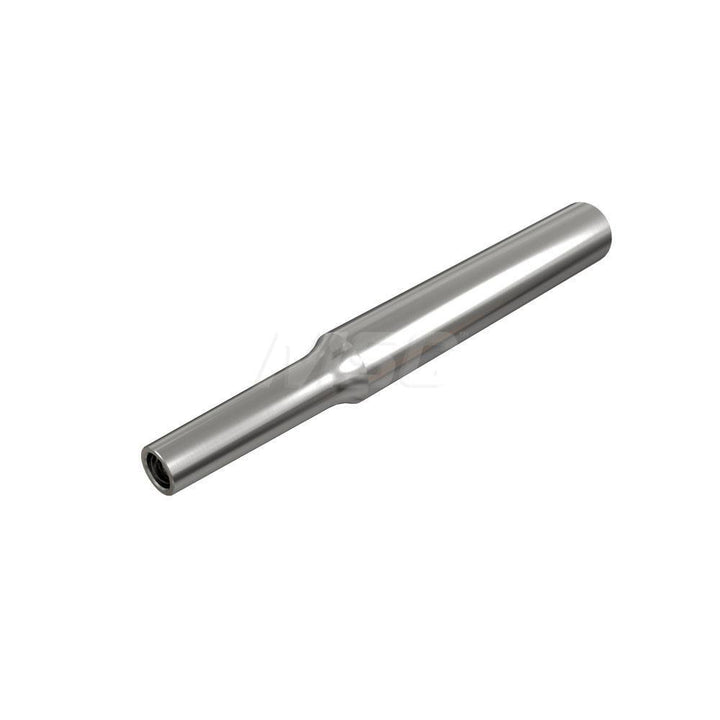

Milling Tip Inserts, Holders & Kits - Iscar 3103648
MFR# 3103648Series Multimaster
$1,035.62List $1,069.40
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3103648 milling tip inserts, holders & kits. Series Multimaster.
Specifications
Coolant throughNo
Effective length (mm)120.00
Head length3.7830
Maximum diameter (mm)20.00
Milling tip styleE93CN-MM; HCE-MM; HCM-MM; HM90 E90A-MM-10; HP E90AN-MM-07; MM EB; MM EC-4; MM HBR; MM HCD; MM HCR
Neck diameter (mm)15.30
Neck thread sizeT10
Overall length (mm)150.00
Projection (mm)120.00
Shank diameter (mm)20.00
Shank shapeStraight
Shank type89 Degree
Toolholder styleMM S-D
Tool applicationMilling
Tool materialSolid Carbide
Weldon flatNo
