Iscar

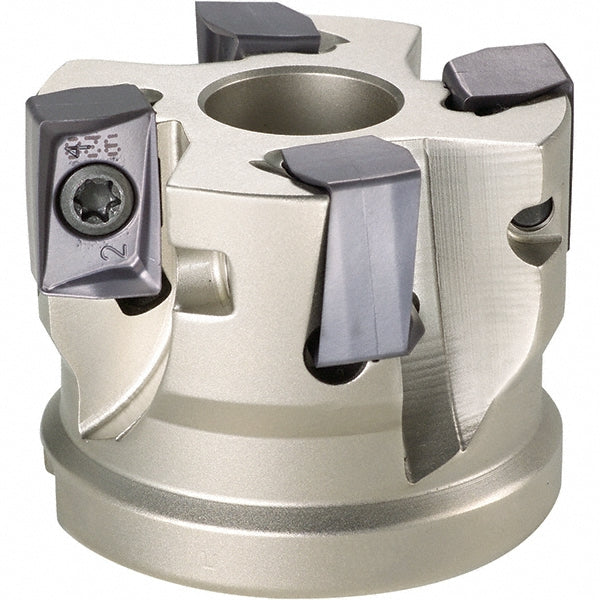

Indexable Milling Cutters - Iscar 3104622
MFR# 3104622Series Helido
$788.29List $814.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes6
Description
The Iscar 3104622 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter1.0000
Compatible insert size codeH490 AN.X 17
Complete insert compatibilityH490 ANKX/ANCX 1706-FF; H490 ANKX/ANCX-17
Coolant throughYes
Cutter styleH490 F90AX-17
Cutting edge length0.6420
Hub diameter2.3600
Insert holding methodScrew
Lead angle0/90
Maximum cutting diameter in2-1/2
Maximum depth of cut0.6420
Maximum insert radius0.0940
Maximum ramping angle2.00
Minimum insert radius0.0160
Number of cutter inserts6
Number of flutes6
Overall height1.7500
StandardsISO
