Iscar

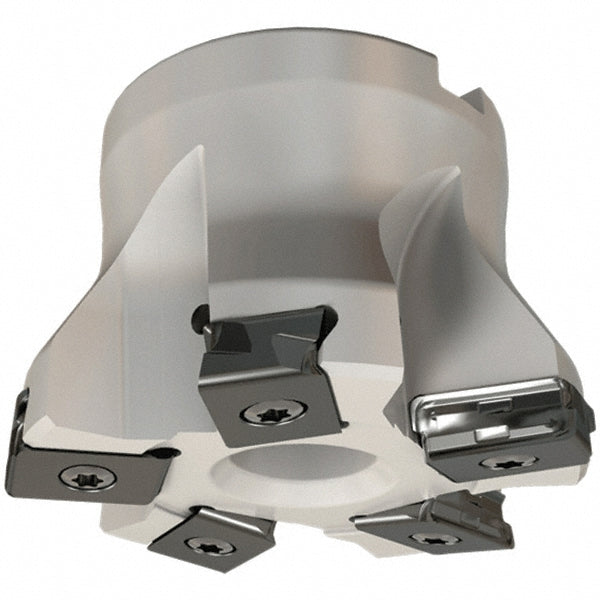

Indexable Milling Cutters - Iscar 3104698
MFR# 3104698Series TangPlunge
$833.80List $861.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3104698 indexable milling cutters. Series TangPlunge.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeHTP LNHT 1606
Complete insert compatibilityHTP LNHT 1606
Coolant throughYes
Cutter styleHTP-R-LN16
Cutting directionRight Hand
Cutting edge length0.1180
Hub diameter1.8900
Insert holding methodClamp; Screw
Lead angle0/90
Maximum cutting diameter in2-1/2
Maximum depth of cut0.1180
Number of cutter inserts5
Number of flutes5
Overall height1.7500
StandardsISO
