Iscar

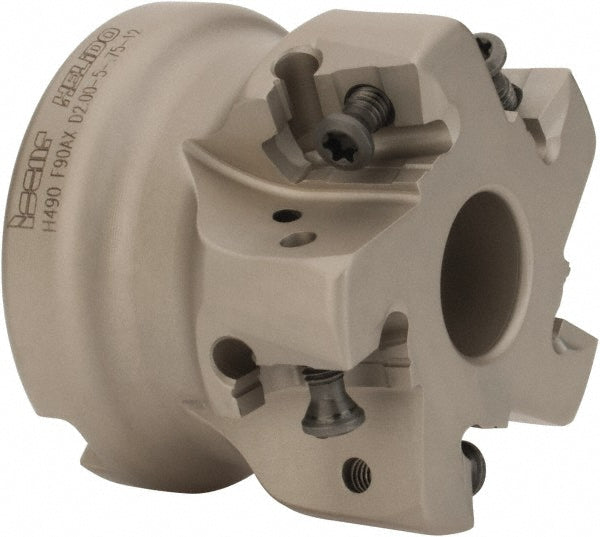

Indexable Milling Cutters - Iscar 3104776
MFR# 3104776Cat# H490 F90AX D2.00-5-.75-12Series Helido
$637.22List $658.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes5
Description
The Iscar 3104776 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeH490 AN.X12
Complete insert compatibilityH490 ANKX/ANCX 1205-FF; H490 ANKX/ANCX-12
Coolant throughYes
Cutter styleH490 F90AX-12
Cutting edge length0.4720
Hub diameter1.8900
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberH490 F90AX D2.00-5-.75-12
Maximum cutting diameter in2
Maximum depth of cut0.4720
Maximum insert radius0.0940
Maximum ramping angle1.50
Minimum insert radius0.0160
Number of cutter inserts5
Number of flutes5
Overall height1.5750
StandardsISO
