Iscar

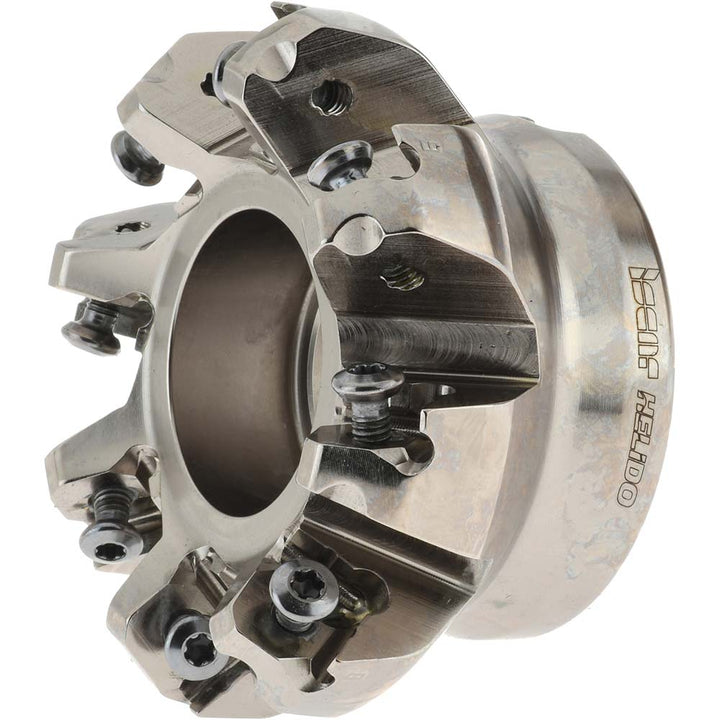

Indexable Milling Cutters - Iscar 3104870
MFR# 3104870Series Helido
$916.60List $972.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes8
Description
The Iscar 3104870 indexable milling cutters. Series Helido.
Specifications
Arbor hole diameter in1
Compatible insert size code05; 0507; 13; 1607
Complete insert compatibilityONHU 0505-W; ONHU/ONMU-05; OXMT 0507; RXMT 1607; S845 SNHU 1305-W; S845 SNMU/SNHU-13
Coolant throughYes
Cutter styleSOF45
Cutting directionRight Hand
Hub diameter2.2100
Insert holding methodScrew
Maximum body diameter2.9090
Maximum cutting diameter2.9090
Maximum depth of cut0.1380
Maximum insert radius0.0310
Minimum cutting diameter in2-1/2
Number of cutter inserts8
Number of flutes8
Overall height1.7500
StandardsISO
