Iscar

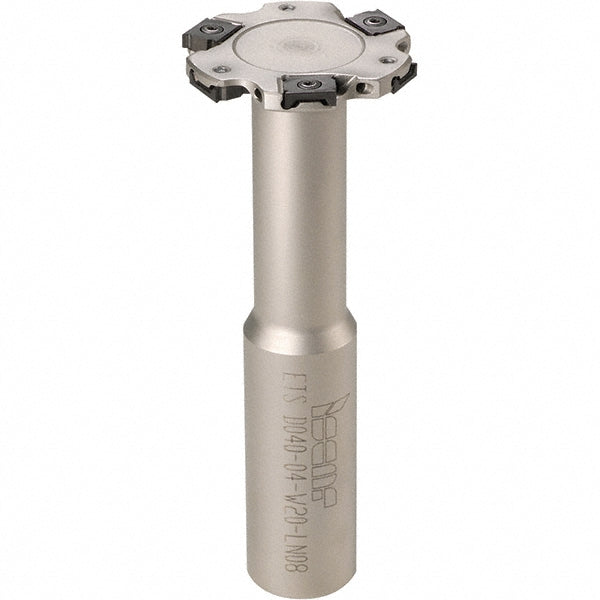

Indexable Milling Cutters - Iscar 3104983
MFR# 3104983Series Mini-TangSlot (ETS-LN08)
$929.98List $985.00
Save 5%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3104983 indexable milling cutters. Series Mini-TangSlot (ETS-LN08).
Specifications
Compatible insert styleLNET
Complete insert compatibilityLNET 082604-TN-N; LNET 082804-TN-N
Connection typeShank
Cutter diameter2.0000
Cutting directionRight Hand
Cutting radius frac in1/64
Hole diameter in3/4
Insert holding methodScrew
Insert inscribed circle (mm)6.85
Maximum cutting width0.1750
Maximum depth of cut0.6250
Minimum cutting width0.1560
Number of cutter inserts8
Number of teeth8
Overall height4.2500
Shank diameter in3/4
Shank length4.0750
Toolholder styleETS-LN08
Tool applicationMilling
Weldon flatYes
