Iscar

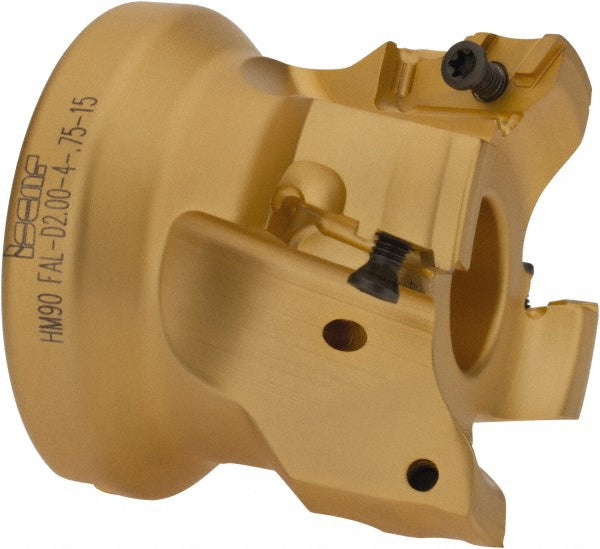

Indexable Milling Cutters - Iscar 3105021
MFR# 3105021Cat# HM90 FAL-D2.00-4-.75-15Series Helialu
$741.80List $766.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Description
The Iscar 3105021 indexable milling cutters. Series Helialu.
Specifications
Arbor hole diameter0.7500
Compatible insert size codeHM90 AXCR 1505
Complete insert compatibilityHM90 AXCR 1505
Coolant throughYes
Cutter styleHM90 FAL-15
Cutting edge length0.5310
Hub diameter1.9300
Insert holding methodClamp; Screw
Lead angle0/90
Manufacturers catalog numberHM90 FAL-D2.00-4-.75-15
Maximum cutting diameter in2
Maximum depth of cut0.5310
Maximum insert radius0.1570
Maximum ramping angle6.50
Minimum insert radius0.0080
Number of cutter inserts4
Number of flutes4
Overall height1.7500
StandardsISO
