Iscar

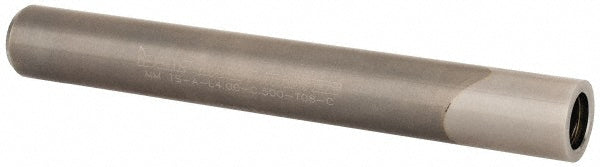

Milling Tip Inserts, Holders & Kits - Iscar 3105070
MFR# 3105070Cat# MM TS-A-L4.00-C.500-T08-CSeries Multimaster
$510.84List $527.50
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Iscar 3105070 milling tip inserts, holders & kits. Series Multimaster.
Specifications
Coolant throughNo
Manufacturers catalog numberMM TS-A-L4.00-C.500-T08-C
Maximum diameter0.5000
Milling tip styleBCM-MM; HCE-MM; HCM-MM; HP E90AN-MM-07; MM EB; MM EC-4; MM GRIT-K/P-45A; MM HBR; MM HCR
Neck diameter0.5000
Neck thread sizeT08
Overall length4.0000
Shank diameter in1/2
Shank shapeStraight
Shank type90 Degree
Toolholder styleMM TS-A
Tool applicationMilling
Tool materialSolid Carbide
Weldon flatNo
