Iscar

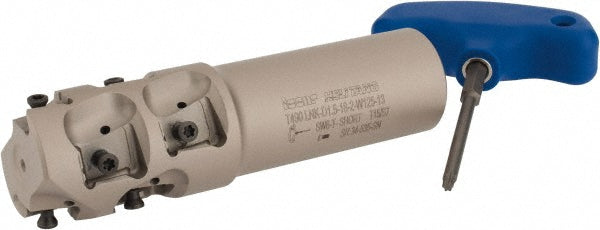

Indexable End Mills - Iscar 3105075
MFR# 3105075Cat# T490 LNKD1.5-18-2-W125-13Series Helitang
$1,685.03List $1,740.00
Save 3%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Iscar 3105075 indexable end mills. Series Helitang.
Specifications
Coolant throughYes
Cutter styleT490 LNK-13
Head length2.4700
Insert compatibilityT490 LN.T 1306
Insert holding methodScrew
Iso 140012004; ISO 50001
Iso 90012008
Lead angle90
Manufacturers catalog numberT490 LNKD1.5-18-2-W125-13
Maximum depth of cut1.8900
Number of cutter inserts8
Number of flutes2
Oshas180012007
Shank diameter in1-1/4
Shank length2.5300
Shank typeCylindrical
StandardsAS 9100
Tool applicationMilling
Tool materialSolid Carbide
